Nano Air Dryers
Blower Purge Desiccant Dryer
Desiccant dryers remove moisture from compressed air, ensuring it remains dry and free from contaminants. Among desiccant dryer technologies, nano desiccant dryers are the most advanced and efficient solution.

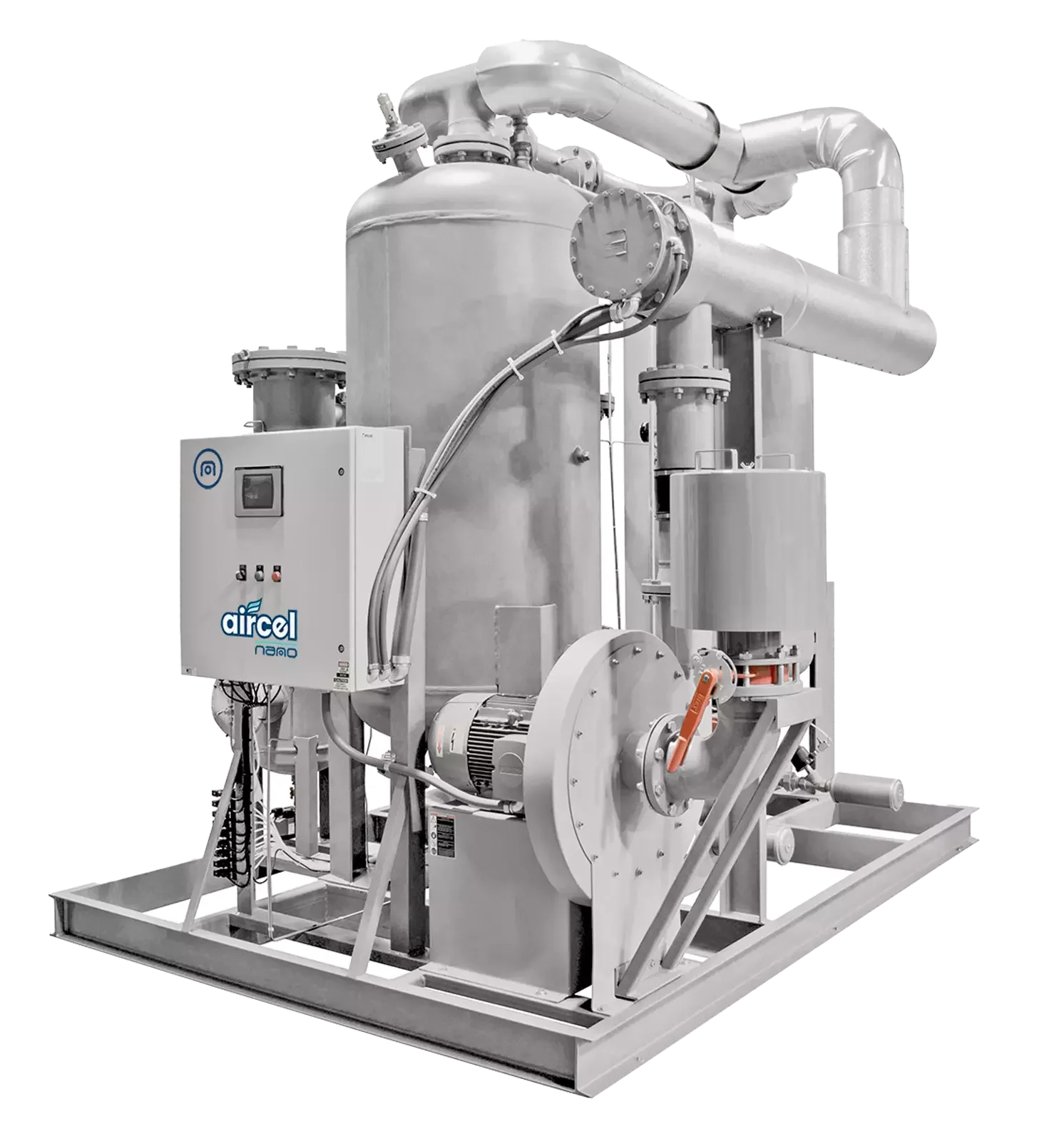

Nano ABP Series Blower Purge Dryers
The Nano ABP blower purge desiccant dryers use a blower and an external heater to provide heated ambient air for regeneration. With purge air usage less than 2% and available zero purge option, these dryers offer the lowest cost of operation for most applications.
Description
The ABP Series Blower Purge Dryer uses a combination of an ambient blower and heater followed by dry purge air to regenerate the desiccant beds.
• Further reduces (or even eliminates) purge air usage to approximately 0-2% averaged over 4-hour cycle for dry air cooling.
• Dry air cooling can be turned off allowing zero air loss operation.
• -40°F dew point as standard for ISO Class 2 applications
• Higher initial investment
• Fastest ROI
Features
PLC Controlled Operation
• The dryer is operated by a robust and reliable PLC control system offering valuable features including 'power on', 'hours run' and 'service required indicators'.
• Memory retention built into the PLC enables the controller to pick up where it left off in the drying cycle, ensuring consistently clean and dry air downstream.
• NEMA 4 control panel
Low Noise Exhaust Mufflers
• Specifically designed to minimize the noise of depressurization and purge exhaust.
• High flow design improves regeneration.
Low Watt Density Heater
• Regeneration circuit is fully insulated for maximum efficiency.
• Specifically designed for a long and dependable operating life in harsh industrial environments.
Secondary Heater Contactor
• Provides protection against overheating in the event of a primary contactor failure.
Regenerative Blower
• Utilizes atmospheric air for regeneration
. • Easy maintenance and a rugged construction with TEFC premium motor that includes filtered air intake.
• Vortex regenerative blower (models 2500 scfm and below); centrifugal blower (models 3000 scfm and larger)
